Introduction

In the exhilarating world of drone racing, a proper racing drone setup can make all the difference between victory and defeat. Racing drones are not your average consumer quadcopters; they are precision-engineered speed machines designed to navigate complex courses at breakneck speeds. A properly assembled and configured racing drone is crucial for achieving optimal performance and gaining that competitive edge that separates the champions from the rest of the pack.

Whether you’re a novice pilot looking to enter your first competition or a seasoned racer aiming to refine your setup, understanding the intricacies of racing drone assembly and configuration is essential. This article will guide you through the process of setting up your racing drone, from selecting the right components to fine-tuning your flight controller for peak performance.

We’ll explore the critical elements that contribute to a winning setup, including frame selection, motor and propeller combinations, electronic speed controllers, and the latest advancements in flight control systems. By the end of this guide, you’ll have the knowledge to build a racing drone that’s not just fast, but also responsive, reliable, and tailored to your flying style.

So, strap in and prepare for takeoff as we dive into the high-octane world of racing drone setups, ensuring that when you step up to the starting line, you’re ready to leave the competition in your wake.

Importance of Proper Racing Drone Setup

The meticulous setup of a racing drone is not just a technical necessity—it’s the foundation of success in the competitive drone racing world. A properly configured racing drone offers a multitude of advantages that can significantly impact your performance and overall racing experience:

1. Enhanced Performance and Responsiveness:
   A well-tuned drone reacts instantaneously to your control inputs, allowing for precise maneuvers and split-second decisions. This responsiveness is crucial when navigating tight turns and obstacles at high speeds.
2. Improved Stability and Control:
   Proper setup ensures your drone maintains stability even in challenging conditions. This stability translates to smoother flights, more consistent lap times, and the ability to push your limits with confidence.
3. Reduced Risk of Crashes and Component Failures:
   A correctly assembled and configured drone is less prone to mechanical and electrical issues. This reliability not only reduces the risk of race-ending crashes but also minimizes costly repairs and downtime between events.
4. Increased Pilot Confidence and Competitiveness:
   When you trust your equipment, you can focus entirely on your racing strategy and piloting skills. This confidence allows you to fly more aggressively and competitively, potentially shaving crucial seconds off your lap times.
5. Optimal Power Efficiency:
   A well-set-up drone maximizes the efficiency of its power system, potentially extending flight times and allowing for more strategic power management during races.
6. Customization to Personal Flying Style:
   Proper setup allows you to tailor your drone’s characteristics to complement your unique flying style, giving you a personalized edge over the competition.

By investing time and effort into setting up your racing drone correctly, you’re not just building a flying machine—you’re crafting a finely-tuned racing instrument that can elevate your performance and potentially lead you to victory.

Essential Components For Your Racing Drone Setup

To build a competitive racing drone, you’ll need to assemble the right components. Please read our article Drone Racing Components – An In Depth Guide with more detailed information about drone racing components. Here are the essential elements for your racing drone setup:

• Frame: The frame serves as the backbone of your drone, housing all the other components. Choose a durable, lightweight frame that suits your racing style and budget. Carbon fiber frames are popular due to their strength-to-weight ratio. Consider factors like prop size compatibility (usually 5-inch for racing), layout (X or H configuration), and protective features for electronics.

• Motors: High-performance brushless motors provide the power and speed needed for competitive racing. Select motors that match your frame size and desired thrust-to-weight ratio. For 5-inch builds, motors in the 2300-2600KV range are common. Higher KV ratings offer more speed but lower efficiency.

• Electronic Speed Controllers (ESCs): ESCs regulate the power delivered to your motors. Ensure your ESCs are compatible with your motors and can handle the current draw. Look for ESCs with the latest features like DShot protocol support and active braking. 4-in-1 ESC boards are popular for their compact design and simplified wiring.

• Flight Controller: The flight controller is the brain of your drone, managing all the sensors and inputs. Popular options include controllers running Betaflight firmware. Look for F4 or F7 processors for optimal performance. Consider features like built-in OSD (On-Screen Display) and blackbox logging for tuning and analysis.

• FPV Camera and Video Transmitter: A high-quality FPV camera and video transmitter are essential for a clear, low-latency video feed to your goggles. Choose a camera with good low-light performance and wide dynamic range. For the video transmitter, look for adjustable power output and support for multiple frequency bands to avoid interference during races.

• Propellers: Choose propellers that match your motors and frame size. High-quality propellers offer better performance and durability. For racing, tri-blade props are popular. Consider factors like pitch and material (e.g., polycarbonate for durability).

Remember, the key to a successful racing drone build is not just selecting quality components, but ensuring they work together harmoniously.

Assembling Your Racing Drone

Now that you have all the components for your racing drone setup, it’s time to assemble your racing drone:

Frame Assembly

• Unbox and Inspect: Begin by unboxing your frame components and inspecting them for any defects or damage. Familiarize yourself with the parts and the assembly instructions provided by the manufacturer.
• Assemble the Frame: Follow the manufacturer’s instructions to assemble the frame. Most frames come with a top plate, bottom plate, arms, and hardware like screws and standoffs. Start by attaching the arms to the bottom plate. Then, add the standoffs and secure the top plate. Make sure all screws are tightened properly, but be careful not to over-tighten and strip the threads.
• Check Alignment: Ensure that all parts are aligned correctly. Misalignment can cause issues with stability and flight performance. Use a flat surface to check if the frame sits evenly, and adjust if necessary.

Motor Installation

• Mount Motors on the Arms: Align each motor with the mounting holes on the frame arms. Most frames and motors use a standard hole pattern, but check compatibility before purchasing. Use the screws provided with the motors and secure them tightly. Apply a small amount of thread locker (such as Loctite) to the screws to prevent them from loosening due to vibration.
• Check Motor Direction: Verify the rotation direction of each motor. Racing drones typically have two clockwise (CW) and two counterclockwise (CCW) motors. This configuration ensures proper thrust and control. Look for small arrows on the motors or refer to the manufacturer’s documentation.
• Motor Wire Management: Route the motor wires along the arms to the center of the frame where the ESCs will be installed. Use zip ties or heat shrink tubing to keep the wires tidy and secure, avoiding any contact with moving parts like propellers.

ESC Connection

• Prepare ESCs for Soldering: Cut the ESC power wires to the appropriate length, strip the ends, and tin them with a small amount of solder. Tinning ensures good contact during soldering.
• Solder ESCs to Motors: Each motor will connect to an ESC. Solder the three motor wires from the ESC to the corresponding pads on the motors. Double-check that the solder joints are solid and free from any shorts or loose connections. Secure the ESCs to the frame arms using double-sided tape or zip ties.
• Connect ESCs to Flight Controller: Solder the signal and ground wires from each ESC to the corresponding pads on the flight controller. Ensure correct orientation to match the motor layout in your drone’s configuration software.

Flight Controller Setup

• Mount the Flight Controller: Attach the flight controller to the frame using rubber vibration dampening mounts or soft mounting solutions to reduce vibrations from the motors. Proper mounting is crucial for accurate sensor readings.
• Connect Peripherals: Connect the ESCs, receiver, FPV camera, and video transmitter to the flight controller. Use the designated ports or pads and refer to the flight controller’s wiring diagram. Ensure all connections are secure and properly insulated to avoid shorts.
• Secure All Connections: Use zip ties or electrical tape to secure loose wires and ensure nothing can move around or get damaged during flight.

FPV System Integration

• Install the FPV Camera: Mount the FPV camera on the front of the frame using the supplied brackets or mounts. Ensure it is positioned securely, and the lens has a clear view ahead. Adjust the camera angle to suit your racing style—most racers prefer a tilt angle between 20 to 45 degrees.
• Mount the Video Transmitter (VTX): Secure the video transmitter in a location with adequate airflow to prevent overheating. Some VTXs come with mounting brackets; others may require double-sided tape or zip ties. Connect the VTX to the camera and flight controller, ensuring all wires are correctly attached.
• Attach the FPV Antenna: Screw or snap the FPV antenna onto the VTX. Use a circular polarized antenna for optimal signal quality and durability. Make sure the antenna is securely mounted and positioned away from other components to minimize interference.

Propeller Attachment

• Choose the Right Propellers: Select propellers that match your drone’s motor and frame size. Racing drones typically use tri-blade props for optimal performance. Ensure the propeller pitch and size are suitable for your motors and intended flight style.
• Attach Propellers to Motors: Install the propellers onto the corresponding motors (CW and CCW). Ensure that the props are oriented correctly for the designated direction of each motor. Tighten the propeller nuts or screws securely, but avoid overtightening, which can damage the propellers or motor shafts.
• Check for Clearance: Spin each propeller by hand to ensure it rotates freely without contacting any part of the frame or other components.

Additional components:

Batteries

Select batteries with the appropriate voltage (e.g., 4S or 6S) and capacity (e.g., 1300-1800mAh) for your setup. Ensure they have a high discharge rate (C-rating) for optimal performance. LiPo (Lithium Polymer) batteries are standard for racing drones.

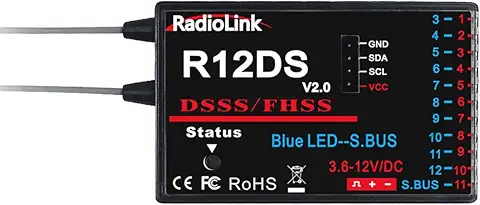

Radio Receiver

A compact, low-latency receiver is crucial for responsive control. Ensure compatibility with your radio transmitter and look for receivers supporting protocols like SBUS or CRSF.

Antenna

For optimal video transmission, use a circular polarized antenna. Consider factors like radiation pattern and durability. Some racers use a combination of omni-directional and directional antennas.

FPV Goggles

While not part of the drone itself, quality FPV goggles are essential for racing. Look for features like diversity receivers, DVR recording, and low-latency displays.

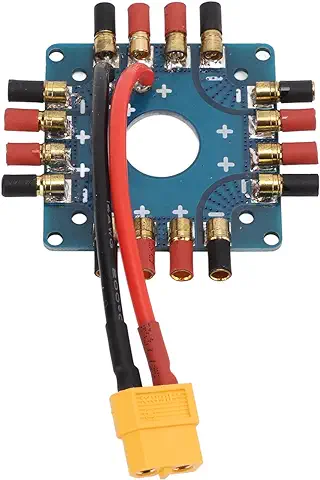

Power Distribution Board (PDB)

A PDB helps organize power distribution to various components. Some frames have built-in PDBs, while others require separate boards.

Configuring Your Racing Drone Setup

With your drone assembled, it’s time to configure the your racing drone setup software:

Binding Your Transmitter

• Prepare for Binding: Turn on your radio transmitter and enter bind mode. Each transmitter has a different method for this, so refer to your specific transmitter’s manual for instructions.
• Bind the Receiver: On your drone, power up the receiver in bind mode. This might involve pressing a small button on the receiver while powering it on. LED indicators will typically signal when the receiver is in bind mode.
• Complete the Binding Process: The transmitter and receiver should automatically connect after a few seconds. When the binding is successful, you will see a solid LED light on the receiver. Perform a range check to ensure the connection is stable and the signal strength is adequate.

Configuring Betaflight

• Install Betaflight Configurator: Download and install the Betaflight Configurator from the Betaflight GitHub page. This software is necessary for setting up and fine-tuning your flight controller.
• Connect Flight Controller to Computer: Use a USB cable to connect the flight controller to your computer. Open the Betaflight Configurator and click the “Connect” button.

Set Basic Parameters:

• Select Firmware: Check that the correct firmware is installed on your flight controller. You might need to flash the latest version of Betaflight firmware. Use the “Firmware Flasher” tab in Betaflight Configurator to do this.
• Calibrate Accelerometer: Navigate to the “Setup” tab and click the “Calibrate Accelerometer” button while your drone is on a flat, level surface. This step ensures your flight controller understands what is level, which is crucial for stable flight.

Configure Ports:

Set Up UARTs: Under the “Ports” tab, assign UARTs (Universal Asynchronous Receiver-Transmitter) for specific devices. Typically, UART1 is used for the receiver, and UART2 might be used for the telemetry or smart audio from the video transmitter.

Setup Receiver:

• Receiver Protocol: Go to the “Configuration” tab and select the appropriate receiver protocol under “Receiver.” For example, choose SBUS for FrSky receivers or CRSF for TBS Crossfire.
• Channel Mapping: Make sure the channel mapping matches your transmitter’s settings (usually AETR for Aileron, Elevator, Throttle, and Rudder). Use the “Receiver” tab to check that the transmitter’s stick movements correspond to the correct channels in Betaflight.

Set Up Flight Modes:

• Acro, Angle, and Horizon Modes: Under the “Modes” tab, configure different flight modes. Acro mode (manual control with no self-leveling) is commonly used for racing. Angle mode (self-leveling) and Horizon mode (self-leveling with manual control option) can be set up for training or specific race requirements.
• Arm/Disarm Switch: Assign a switch on your transmitter to arm or disarm your drone. It’s a safety feature that prevents the motors from spinning unintentionally.

Enable On-Screen Display (OSD):

OSD Settings: Use the “OSD” tab to configure what information appears in your FPV goggles. Common OSD elements include battery voltage, flight time, RSSI (signal strength), and warnings. Customize the display to provide the most critical data at a glance.

Setting Up Failsafe on Your Racing Drone Setup

• Configure Failsafe Settings: Navigate to the “Failsafe” tab in Betaflight. Set the failsafe to reduce throttle to zero and disarm the motors in the event of a signal loss. This configuration helps prevent flyaways and reduces the risk of damage or injury.
• Test Failsafe Operation: Disconnect your transmitter while the drone is powered on (without propellers). Ensure that the failsafe triggers correctly and the motors stop spinning.

Tuning PID Values

• Understand PID Tuning: PID stands for Proportional, Integral, and Derivative. These are the control parameters that determine how the drone responds to your stick inputs and how it maintains stability. Proper PID tuning is critical for optimal flight performance.
• Proportional (P): Controls the amount of correction applied in response to errors. High P values can make the drone more responsive but may cause oscillations.
• Integral (I): Adjusts for persistent errors over time, such as drift. It helps maintain a stable hover but too high a value can cause slow oscillations.
• Derivative (D): Dampens the response to sudden movements, reducing overshoot. It smooths out the flight but can add latency if set too high.
• Initial PID Setup: Betaflight provides default PID settings that work well for most standard builds. Start with these settings and adjust them based on your drone’s flight characteristics.

Manual Tuning:

• Fly and Observe: Conduct test flights to observe how your drone reacts. If you notice wobbling or oscillations, reduce the P value. If the drone is slow to respond or drifts, increase the I value. To reduce bounce-back after sharp turns, adjust the D value.
• Tune in Small Increments: Adjust one parameter at a time in small increments. Test after each change to assess the effect.
• Blackbox Logging: Use the blackbox feature (if available) to record flight data. This data can be analyzed later to fine-tune PID values more accurately.

Setting Up Filters:

• Adjust Filter Settings: In the “Configuration” tab, you’ll find options for Gyro and D-Term filters. Filters help smooth out sensor noise and vibrations that can affect flight performance.
• Dynamic Filters: Enable dynamic filters, which adjust automatically based on your flight conditions. This can provide a good balance between responsiveness and smoothness.
• Test and Adjust: Conduct test flights to see how the drone performs with the filter settings. Fine-tune the settings if you notice vibrations or oscillations.

Configuring Additional Features:

• Smart Audio or Tramp Protocol: Set up Smart Audio or Tramp Protocol for your video transmitter (VTX) control. This allows you to change VTX power levels and channels via the Betaflight OSD or your transmitter.
• Telemetry Setup: Configure telemetry settings to receive real-time data (such as battery voltage and current) on your transmitter. This feature is particularly useful for monitoring your drone’s performance mid-flight.
• RSSI (Received Signal Strength Indicator): Display RSSI in the OSD to monitor the signal strength between your transmitter and the receiver. This information helps you avoid flying beyond your control range.

Save and Test Configurations:

• Save Settings: After configuring your settings in Betaflight, click the “Save and Reboot” button to store the changes on your flight controller.
• Verify Configurations: Perform a bench test (without propellers) to check that all systems are working as intended. Verify motor spin direction, receiver inputs, and that switches (arm/disarm, modes) function correctly.

Conducting a Test Flight:

• Initial Hover Test: With propellers on, conduct an initial hover test in a safe, open area. Test the drone’s stability and responsiveness to stick inputs.
• Monitor Temperatures: After the hover test, check the temperatures of the motors and ESCs. Overheating can indicate an issue with your configuration, such as excessive D-term values or incorrect ESC settings.
• Test Flight Modes: Switch between different flight modes to ensure they work as expected. Make sure the drone arms and disarms smoothly and that failsafe engages properly.
• Adjust Settings as Needed: Based on the test flight, return to Betaflight Configurator to fine-tune any settings. Repeat the process until you achieve the desired flight performance.

Ongoing Maintenance and Fine-Tuning:

• Continuous PID Adjustment: Regularly review and adjust PID settings as needed. Factors like weather conditions, component changes, and flying styles can impact your drone’s performance.
• Firmware Updates: Keep your Betaflight firmware up to date. New versions often include bug fixes, performance enhancements, and new features that can improve your flying experience.

Additional Tips for Configuring Your Drone

• Use a Checklist: Create a configuration checklist to ensure you don’t miss any critical steps.
• Document Your Settings: Keep a record of your PID, filter, and mode settings. This documentation can help you revert to a previous configuration if needed.
• Take it Slow: Don’t rush the configuration process. Small, methodical adjustments yield the best results.
• Leverage the Community: Join forums, online groups, or local clubs where you can ask questions and learn from others’ experiences.

By following these detailed steps, you’ll have a finely tuned racing drone that performs reliably, responds precisely, and gives you the competitive edge on race day.

Safety Checks and Pre-Flight Procedures on Your Racing Drone Setup

Before each flight, perform a thorough safety check on your racing drone setup:

• Inspect Components: Before every flight, inspect the frame, motors, ESCs, and all electronic components for any signs of wear, damage, or loose connections.
• Propeller Condition: Check the propellers for chips, cracks, or other damage. Replace any damaged propellers to avoid in-flight failures.
• Battery Check: Verify that the battery is fully charged and securely connected. Check the battery voltage before takeoff.
• Test Video Feed: Confirm that the FPV video feed is clear and has good range.
• Perform Control Surface Test: Conduct a motor test by spinning them up briefly to check if they respond correctly to transmitter inputs.

Tips for Optimal Racing Drone Performance

• Keep your drone clean and well-maintained
• Regularly inspect and replace worn or damaged components
• Balance your propellers for smoother operation
• Practice proper battery management and storage
• Continuously refine your PID tuning for better performance

Conclusion

A well-set-up racing drone is essential for a successful and enjoyable drone racing experience. By understanding the components, assembly process, and configuration steps, you’ll be well on your way to building a competitive machine that suits your racing style and preferences.

FAQ

1. What’s the ideal frame size for a racing drone?
   Most racing drones use 5-inch propellers, so frames designed for this prop size are most common. However, some racers prefer smaller 3-inch or larger 7-inch builds depending on the race type and personal preference.

2. How do I choose the right motors for my racing drone?
   For a 5-inch racing drone, look for motors in the 2300-2600KV range. Consider factors like frame size, battery voltage, and desired performance characteristics. Higher KV ratings generally mean more speed but less efficiency.

3. What’s the difference between 4S and 6S batteries for racing drones?
   4S (14.8V) batteries are common and provide a good balance of power and flight time. 6S (22.2V) batteries offer more power and potentially higher top speeds but require compatible components and careful power management.

4. How important is the flight controller in a racing drone setup?
   The flight controller is crucial as it manages all drone operations. Look for modern F4 or F7 processors that can handle fast looptimes and support features like OSD and blackbox logging for tuning.

5. What’s the best FPV camera for racing?
   Look for low-latency cameras with good light handling capabilities. Popular options include the Runcam Swift or Foxeer Predator series. The ideal choice may depend on your specific racing conditions. Check our article about FPV Drone Cameras-Top 10 of 2024 here.

Final Thoughts

Building and setting up your own racing drone can be a challenging but rewarding experience. Don’t be discouraged if you encounter obstacles along the way during your racing drone setup – the drone racing community is full of supportive individuals who are eager to share their knowledge and experience. As you continue to refine your setup and skills, you’ll find yourself fully immersed in the thrilling world of competitive drone racing.
